 5-Stage Powder Coating System

Design: 3’-0”w x 3’-0”h Opening
10 FPM

SCROLL DOWN FOR PICTURES, LAYOUT & PRICING INFO

Design Specifications:

* Part Opening: 3’-0” W x 3’-0” H (can be made taller)

* Maximum Product: 2’-6” W x 2’-6” H x 6’-0” L (Modifiable)

* Design Line Speed 10 FPM (Variable Speed Control)

* Condition: Very nice and operational until 08/30/16

System Features and Materials:

* 5-Stage Stainless Steel Washer

* Dwell Times @ 10 FPM: Zones (Sec): S1-Clean (90 @ 140°) / S2-Rinse (45 @ amb.) / S3-Iron Phosphate (60 @ 130°), S4-Rinse (30 @ amb.) S5-R.O. Rinse (30 @ amb.)

* Maxon Tube-O-Therm Burners on Stages 1, 2 & 3

* Carver Pumps

* Dimensions: 9’-0” High x 8’-0” Wide x 75’-0” Long (est)

* R.O. System and High Velocity Blow-Off

* Ovens (Convection)

* Dry-Off Oven – 400° F, 10-Min. Dwell, 9’-0” High x 13’ Wide x 36’ Long

* Floor-Mounted Duct & Burner Box, Air Seals, 2.0 Mbtu’s

* Cure Oven 425° F, 25-Minute, 9’-0” High x 13’ Wide x 46’ Long

* Floor-Mounted Duct & Burner Box, Air Seals & Hood, 3.0 Mbtu’s

* 6” Roof and Wall Oven Panels, 4” Insulated Floor

* Maxon Burners & Honeywell Controls

* Ovens may be reconfigured to new design as needed.

* Conveyor System

* 3” Rapid Flex 125 lbs Capacity per hanging point

* 620’ Long – May be added to.

* Floor-Mounted Supports

* Design will be re-engineered for buyers floor plan

* Nordson Horizon 400 Booth System / Environmental Room

* New in 2014

* iControl with 8 Encore Automatic Guns & 1 Encore Manual Gun

* Azo Sieve, 150 lb Fluidizing Hopper

* Automatic Triggering, Fire Detection and all related components

* Additional Booths & Color Modules are available for Multiple Colors

* Environmental Room with HVAC, Room Dimensions – 20’ W x 24’ L

* Price: $240,000 Removed and Loaded On Trucks. ***Price is subject to shipping direct from removal site prior to October 1st, 2016.

5 stage powder coating system

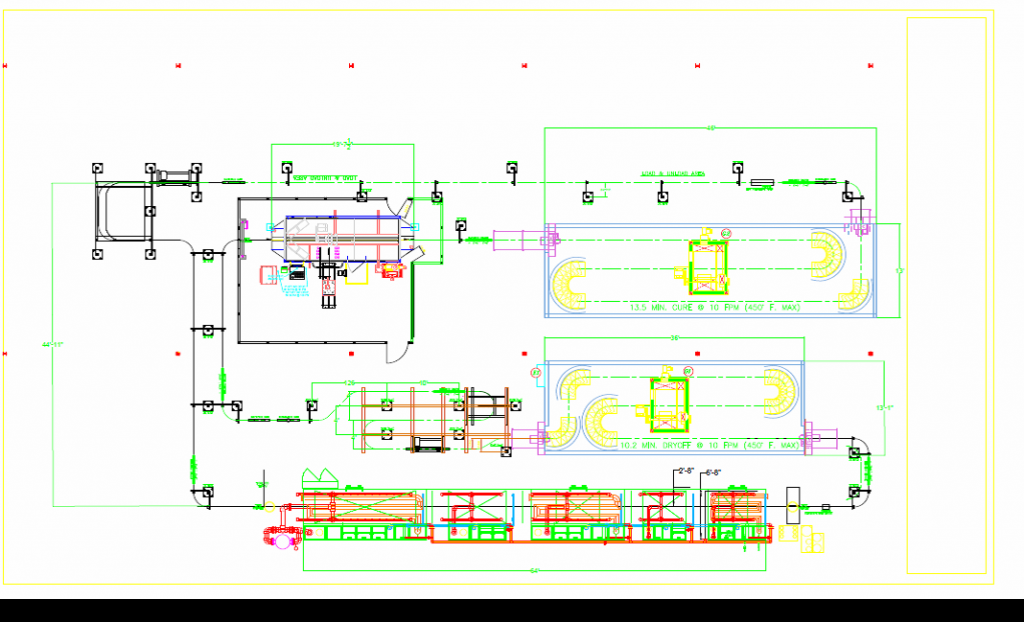

Layout

5 stage powder coating system

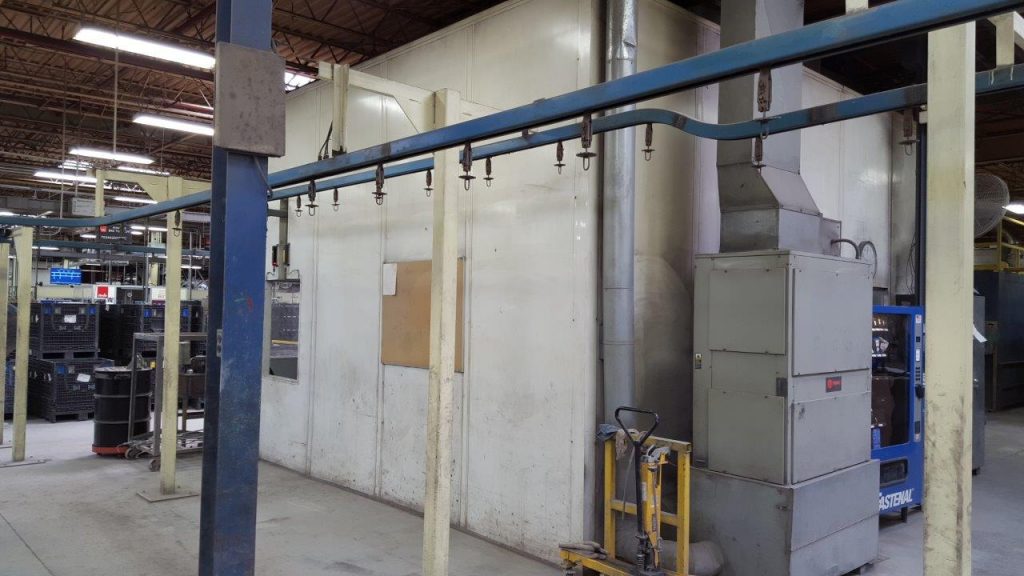

EV Room Side View



used powder coating system

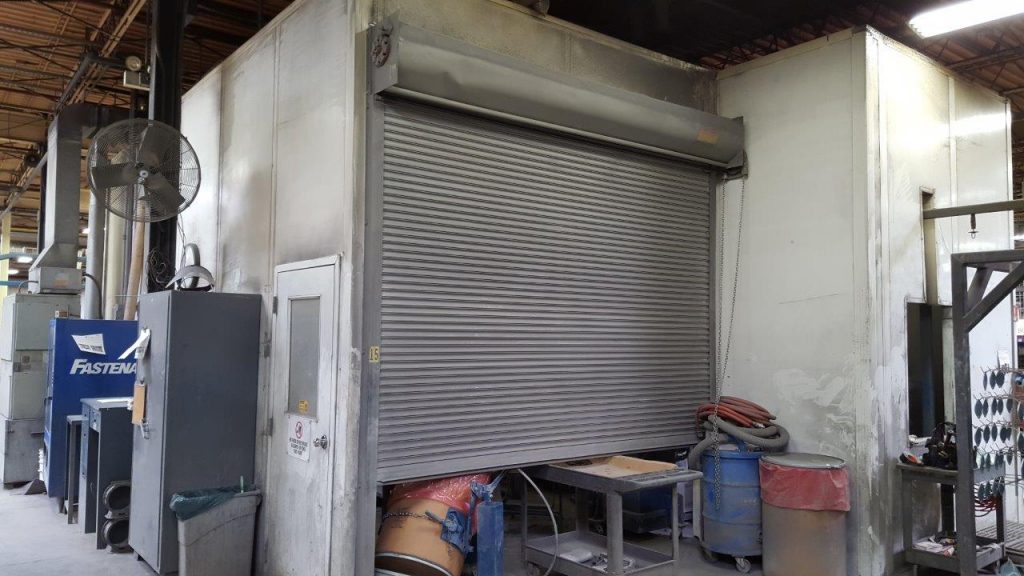

EV Room End View



used powder coating system

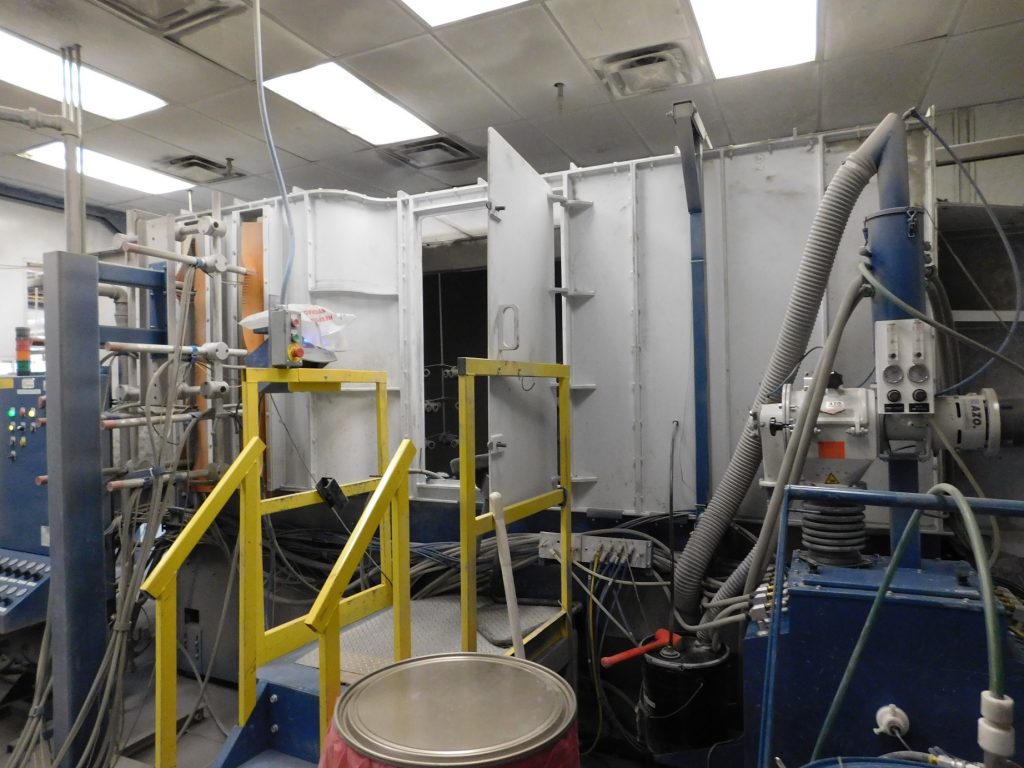

Booth Side View



used powder coating equipment

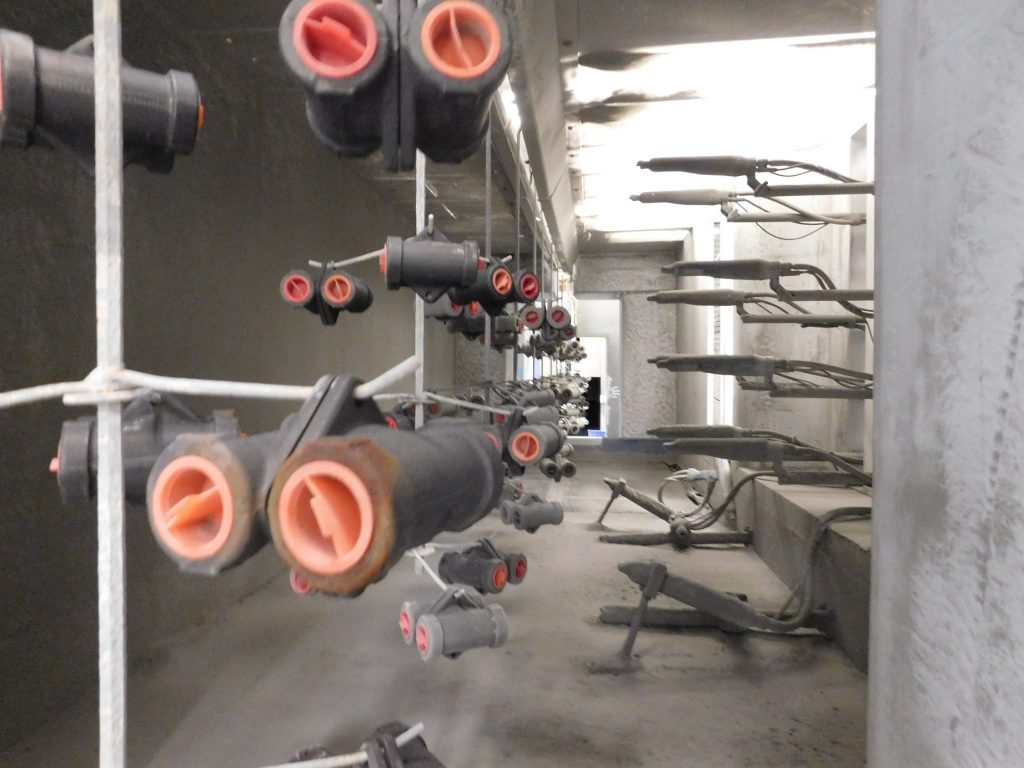

Booth Inside



used powder coating equipment

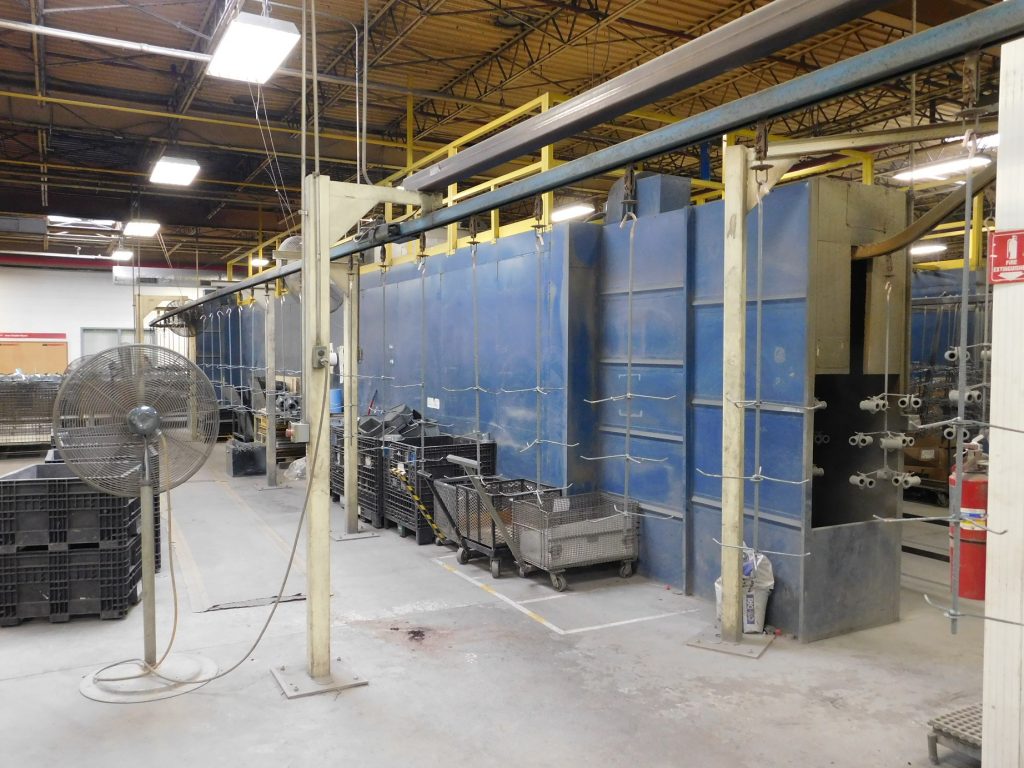

Dry Off Oven End View



5-stage powder coating system

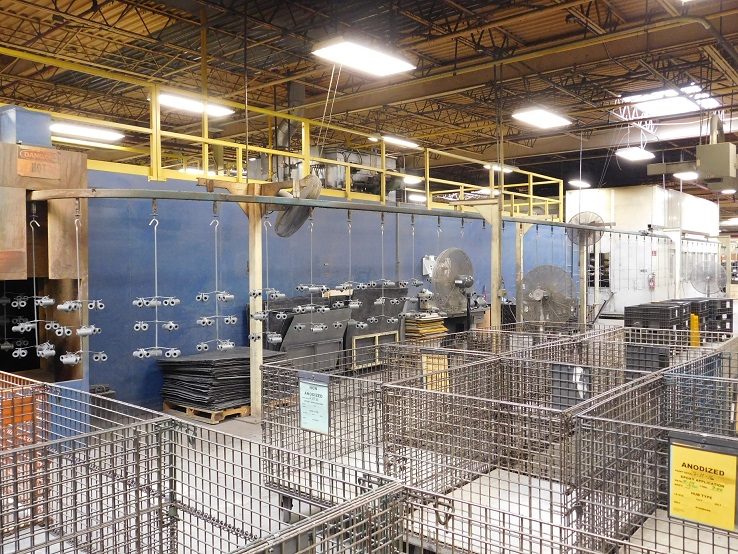

Cure Oven Side View



used powder coating equipment

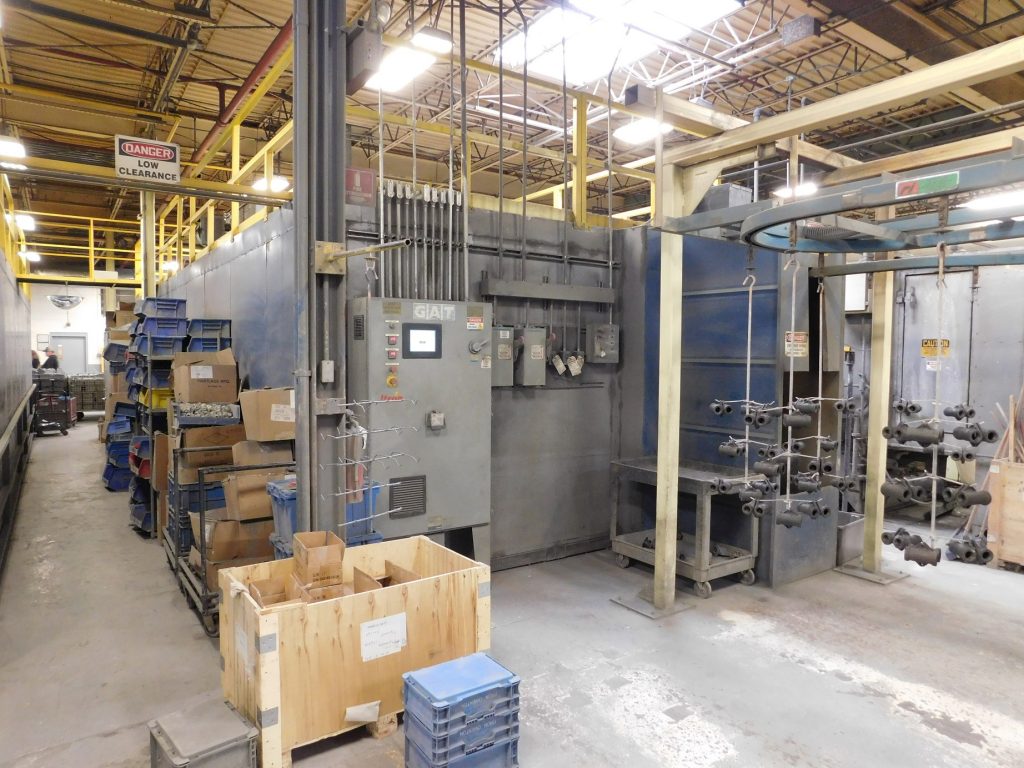

Cure Oven End View



used powder coating equipment

Washer End View



5 stage powder coating system

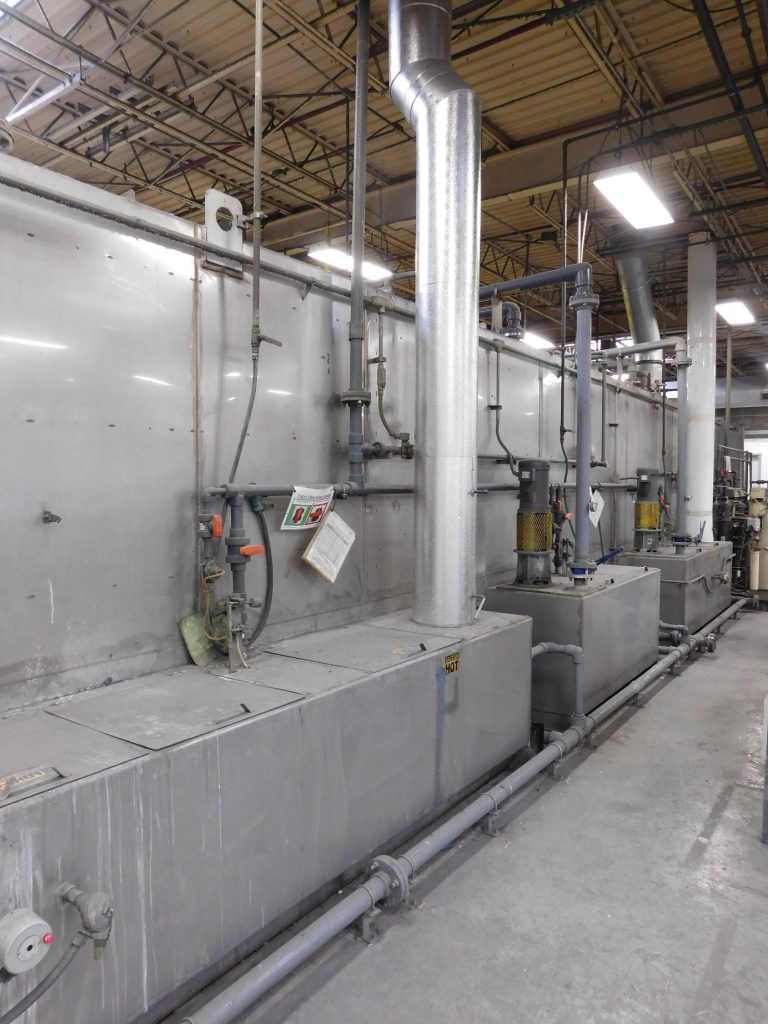

Washer Side View



used powder coating equipment

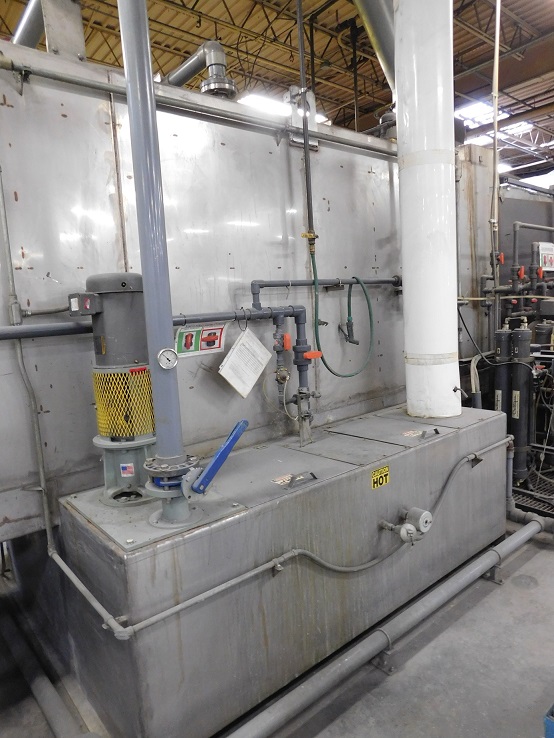

Washer Stage 2



used powder coating equipment

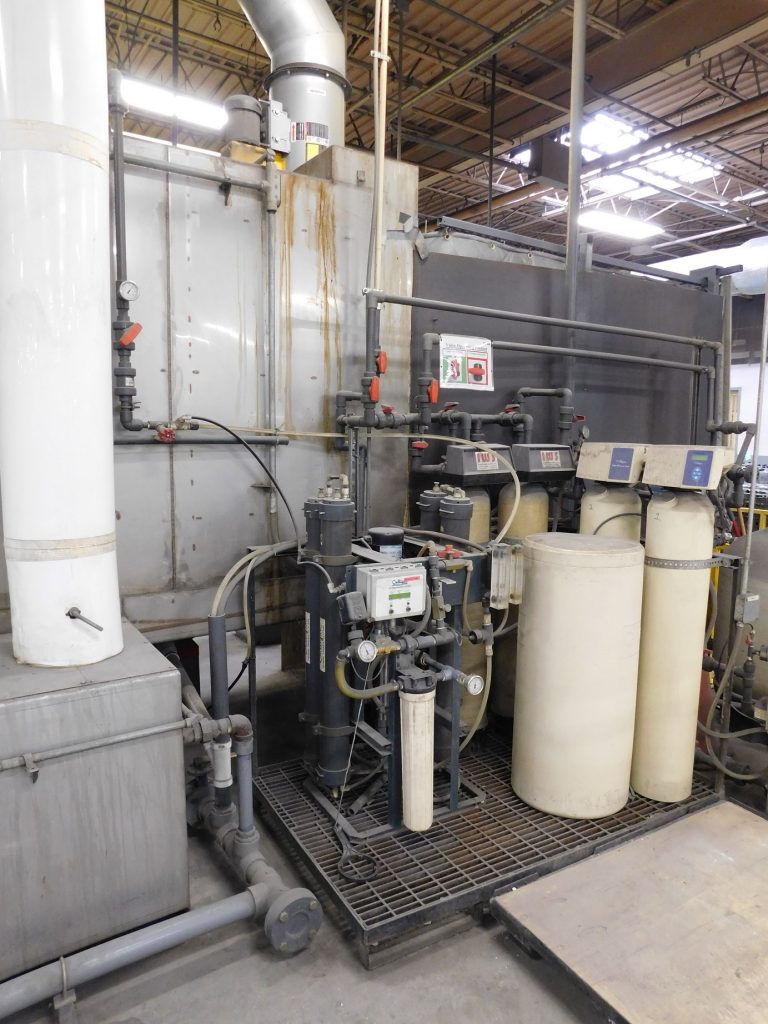

RO System



used powder coating equipment

Control
