Three Stage GAT Stainless Steel System

Email this to someoneShare on FacebookShare on LinkedInTweet about this on Twitter

used finishing equipmentFinishing Resources
Fayetteville, Arkansas
Keith Baysinger: 719-661-9947

3-Stage GAT SS System

scroll down for pics

Design Specifications:

  •  Part Opening: 2’-6” W x 4’-0” H (can be increased)
  • Design Line Speed 4-6 FPM (Variable Speed Control)

System Features and Materials:

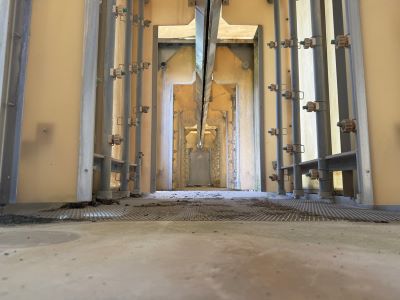

  • 3 Stage Stainless Steel Washer
    – 32’ long x 10’ high x 7’ wide
    – Zones (Sec): S1-Clean & Phos(12’) / S2-Rinse (4’)/S4-Rinse (4’) with 4’ drains
    – Eclipse Burners
    – Gusher Pumps & Exhaust Fans
  •  Ovens (Gas Catalytic & Convection)
    – 7-Minute Dry-Off Oven, 350° F Design, 1-Pass, 4” Oven Panels
    – 20-Minute Cure Oven, 450° F Design, straight, 4” Oven Panels
    – Eclipse Burners & Honeywell Controls
    – Ovens will be provided with 4’ wall Panels
  • 560’ Conveyor System
  • Nordson Excel 2001 Powder Booth System
    – (6) Automatic Gun Nordson Encore/I-Control Application System
    – (1)Nordson Encore Manual Guns
    – Sieve, Fire Detection
  • Equipment is removed and read to ship.
  • Modifications, Installation and Additional Options Available
  • $165,000 Loaded

used 3 stage gat system

used 3 stage gat system used gat system

3 stage gat system used 3 stage finishing system

used 3 stage gat sys used 3 stage coating sys

3 stage gat system


Download the Word doc for more pics
